2.4G
  • Product description

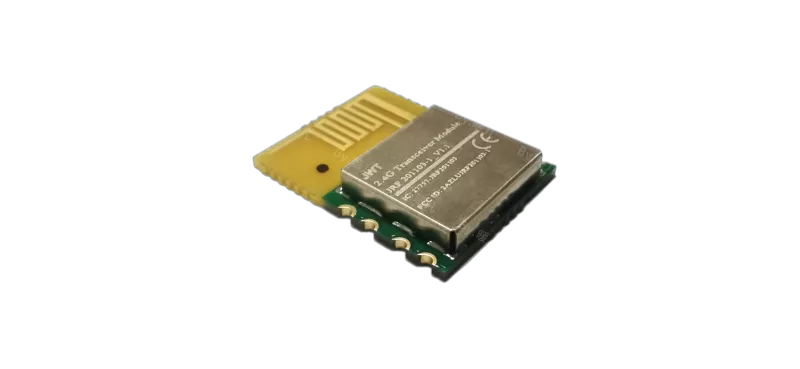

The JRF 201103 module uses the JD0069C* chip, which is a universal chip that works at 2.4GHzMonolithic integrated wireless transceiver chip in ISM band. The chip integrates an RF receiver, RF transmitter, frequency synthesizer,GFSK modulator, GFSK demodulator and other functional modules. Through the SPI interface, the output power, channel selection and coordination can be selectedFlexible configuration, and built-in CRC, FEC, automatic response and automatic retransmission mechanisms, can greatly simplify the system setupCalculate and optimize performance. In the simplest case, the user only needs to connect the eight wires of power supply, ground, RST, MOSI, MISO, CS, CLK, IRQ, which can be used. The stamp hole design has the advantages of small size, low power consumption, high transceiver sensitivity, and is suitable for mass patch production.
  • Product details
· Operating temperature -20℃~+85℃ · Storage temperature -40℃~+125℃ · Operating voltage -1.9V~3.6V · Input RF signal strength Pin_max (air) maximum +10dBm · ESD (human body model) Max. 2KV
  • Application field
· Wireless gaming devices · Wireless tags
· Telemetry · Wireless access control · Security systemv · Intelligent sports equipment · Remote control device · Wireless toy
· Smart TV remote control · Industrial sensors and wireless industrial control equipment
