7.0Display
  • Product description
This product is suitable for the display screen of the water purifier, can directly drive the display screen, display a specific interface, control and select the required functions through the touch screen and knob, and can realize the system upgrade through USB.
  • Product details

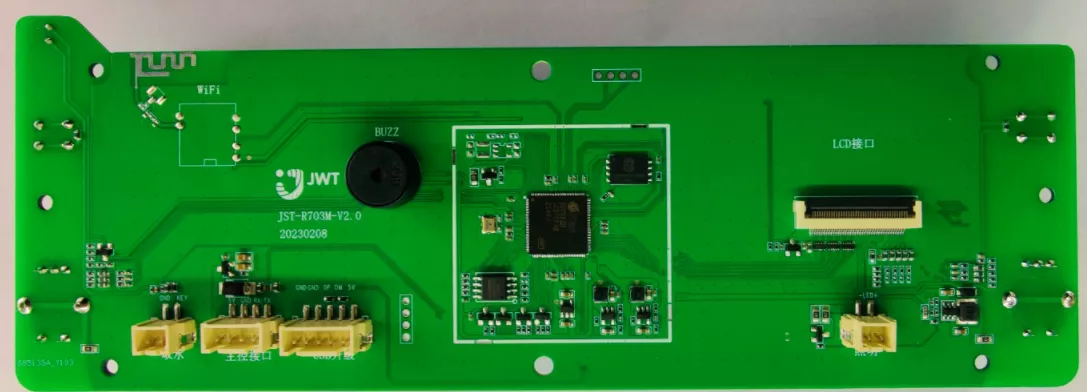

· Main control chip display special chip · FLASH storage 16MBytes · Memory 1Gb SD NAND · Power supply DC5V, working current 5V@<500mA (including screen) · PCBA size 224.6mm x80mm (diameter) · PCB board thickness is 1.6mm · Electrical parameters · Operating voltage 4.5~5.5V (power supply ripple <50mV) · Working current (including screen) 300~500mA (power supply 5V) · Output signal (serial port) 3~3.6V (high and low level signal) · Operating temperature -40℃~+65℃ (under 5V voltage) · Storage temperature -40℃~+125℃ · Electrostatic protection (contact) maximum 4KV · Electrostatic protection (air) maximum 8KV
  • Application field
· Intelligent water dispenser and customized solutions
